Bank Master XRF EDS 5000

We are leading Suppliers, Manufacturers, Exporters & Dealers for Gold testing Machine in India.

EDS 5000 Precious metal analyzer uses the high efficiency practical proportional counter detector, by the real price localization, satisfies the precious metal component inspection request.

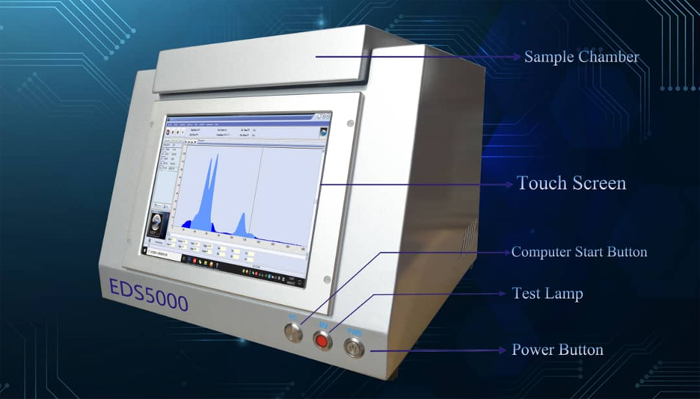

EDS 5000 Integrated industrial computer, no external computer required. The instrument adopts professional appearance design and real-time monitoring system. In order to ensure the safety of users, automatic radiation protection device is installed. The optional colors of the different elements help to distinguish the elements Of interest clearly and easily. After the test, the test report will be displayed automatically.

Instrument Configuration

• Proportional counting detector
• Signal detection circuit
• High and low voltage power supply module
• Integrated industrial computer
• Touch Screen Display

Technical Parameters

• Elemental analysis ranges: From calcium (Ca) touranium (U)
• Measurement objects: Solid, Powder, Liquid
• Analysis range: 1%~99.99%
• Measuring accuracy: ±0.1%
• Expanded uncertainty: less than 0.36%
• High voltage power supply: 4~50 KV / 0 ~ 1mA
• Detector: Proportional counter
• Testable elements: Gold Silver Copper Zinc Nickel Platinum, Cadmium Iridium Rhodium
• X-ray source: Molybdenum target X-ray tube (no radiation)
• Test time: Adjustable from 10 to 60 seconds
• Test point diameter: 1 ~ 2mm
• Environment temperature: 0'C ~ 30'C
• Environment humidity: less than 70 %
• Input voltage: AC 220V± 5V, Recommended to configure AC purification voltage regulator power supply
• Sample cavity size: 310mmx240mm x 90mm
• Instrument dimensions: 430mmx430mmx370mm
• Instrument Power: 120W
• Net Weight: 27kg
